Column Type Size Nulls Auto Default Children Parents Comments
orbit_id bigint 19  √
moid_queue.orbit_id Implied Constraint R
q double 22 semi-major axis, AU
e double 22 eccentricity e (dimensionless)
i double 22 inclination, deg
node double 22 longitude of ascending node, deg
arg_peri double 22 argument of perihelion, deg
time_peri double 22 time of perihelion, MJD
epoch double 22 epoch of osculating elements, MJD
h_v double 22 Absolute magnitude
residual double 22 RMS residual, arcsec
chi_squared double 22  √  null chi-squared statistic
cov_01 double 22  √  null covariance EC EC (see SQL documentation)
cov_02 double 22  √  null covariance EC QR (see SQL documentation)
cov_03 double 22  √  null covariance QR QR (see SQL documentation)
cov_04 double 22  √  null covariance EC TP (see SQL documentation)
cov_05 double 22  √  null covariance QR TP (see SQL documentation)
cov_06 double 22  √  null covariance TP TP (see SQL documentation)
cov_07 double 22  √  null covariance EC OM (see SQL documentation)
cov_08 double 22  √  null covariance QR OM (see SQL documentation)
cov_09 double 22  √  null covariance TP OM (see SQL documentation)
cov_10 double 22  √  null covariance OM OM (see SQL documentation)
cov_11 double 22  √  null covariance EC W (see SQL documentation)
cov_12 double 22  √  null covariance QR W (see SQL documentation)
cov_13 double 22  √  null covariance TP W (see SQL documentation)
cov_14 double 22  √  null covariance OM W (see SQL documentation)
cov_15 double 22  √  null covariance W W (see SQL documentation)
cov_16 double 22  √  null covariance EC IN (see SQL documentation)
cov_17 double 22  √  null covariance QR IN (see SQL documentation)
cov_18 double 22  √  null covariance TP IN (see SQL documentation)
cov_19 double 22  √  null covariance OM IN (see SQL documentation)
cov_20 double 22  √  null covariance W IN (see SQL documentation)
cov_21 double 22  √  null covariance IN IN (see SQL documentation)
conv_code varchar 8  √  null JPL convergence code
o_minus_c double 22  √  null Vestigial observed-computed position, essentially RMS residual
moid_1 double 22  √  null Minimum orbital intersection distance (MOID) solution 1
moid_long_1 double 22  √  null Longitude of MOID 1
moid_2 double 22  √  null Minimum orbital intersection distance (MOID) solution 2
moid_long_2 double 22  √  null Longitude of MOID 2
arc_length_days double 22  √  null Arc length of detections used to compute orbit

Table contained 0 rows at Fri Jul 12 15:38 HST 2024

Indexes:
Column(s) Type Sort Constraint Name
orbit_id Primary key Asc PRIMARY

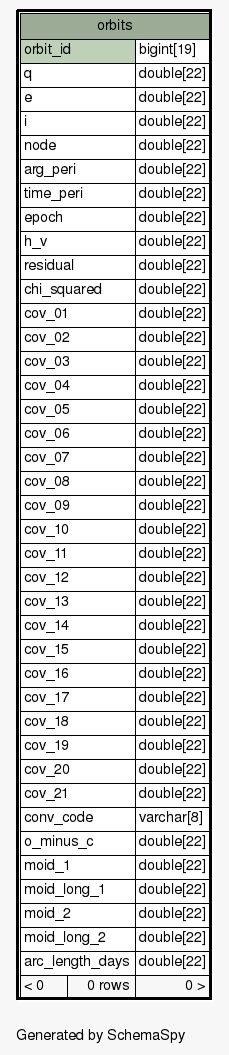

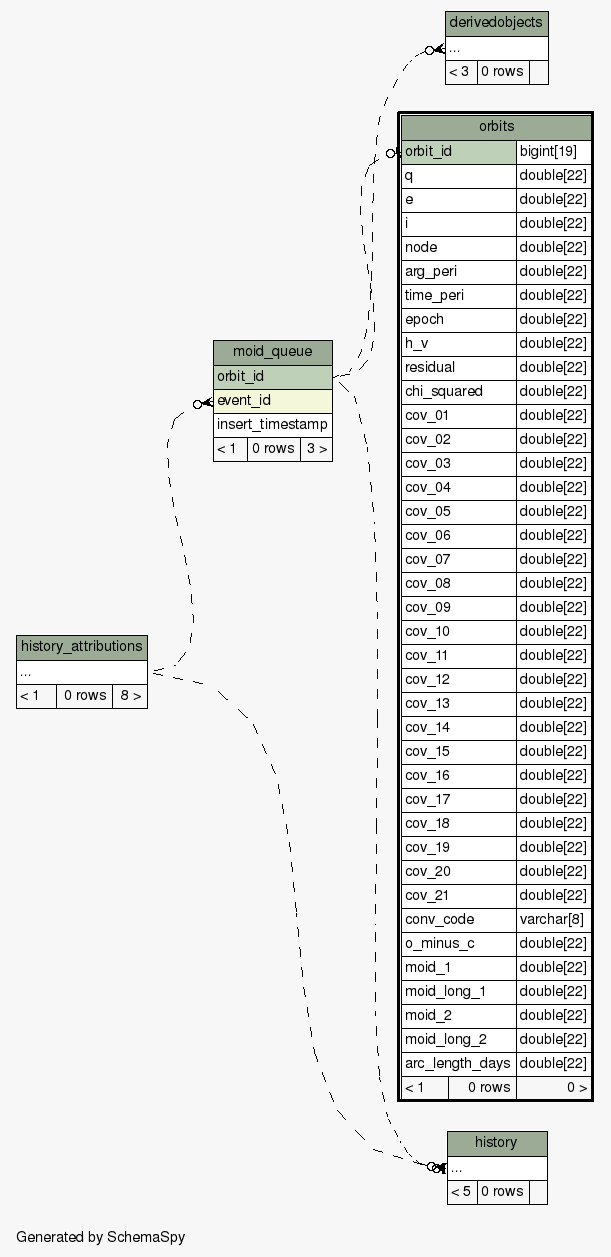

Close relationships:
